Digital Conference System Main Unit HT-7000
Features

1. The main unit of the digital conference system can support 60 units delegate and chairman microphone and can be extended to support 250 units microphone with extension power unit.
2. It is equipped with four groups of 8P-DIN interface for system connecting.
3. It has a built-in monitor loudspeaker.
4. The main unit of the digital conference system offers a built-in power amplifier, which can support the external speaker directly.
5. It offers system support 1/2/3/5/Free mode.
6. It has support video camera auto-track with video processor HT-8008.
7. It offers support voting with voting processor HT-8000.
8. Connection:
a. 1 pcs 13m main cable with 8PIN plugs
b. 8 PIN socket for system connection

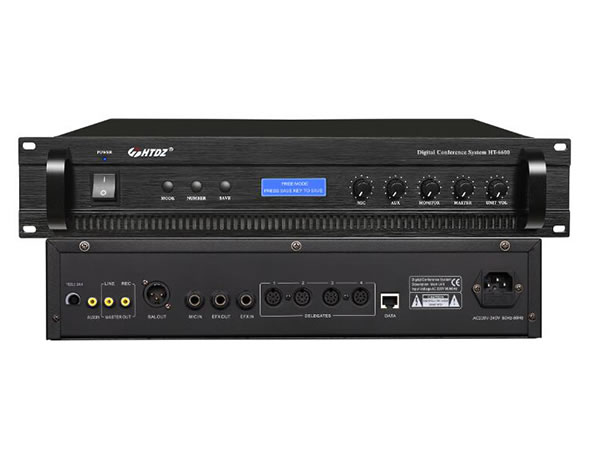

Digital Conference System Main Unit HT-6600
Features

1. The main unit can support 60 units delegate and chairman microphone and can be extended to support 250 units microphone with extension power unit.
2. It is equipped with four groups of 8P-DIN interface for system connecting.
3. It has a built-in monitor loudspeaker.
4. It offers system support discuss mode: Free mode, FIFO mode (1-9), Limit mode (1-9).
5. The system working mode can display on LCD.
6. It has support video camera auto-track with video processor HT-8008.
7. It offers support voting with voting processor HT-8000.
8. Connection:
a. 1 pcs 13m main cable with 8PIN plugs
b. 8 PIN socket for system connection

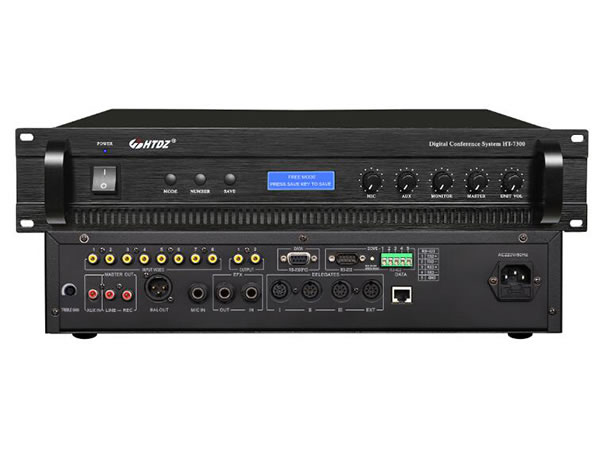

Digital Conference System Main Unit HT-7300
Features

1. The main unit can support 60 units delegate and chairman microphone and can be extended to support 250 units microphone with extension power unit.
2. It is equipped with four groups of 8P-DIN interface for system connecting.
3. It has a built-in monitor loudspeaker.
4. It offers a built-in video and voting processor.
5. The main unit has the following features when working without a computer:
a. LCD display the working mode on the front panel.
b. Support many conference work mode: Free, FIFO (1-9), Limit (1-9).
6. The main unit has the following features when working with a computer and other equipment:
a. Manage the meeting with software, support double screen display.
b. Voting function (yes, no, abstain).
c. Electing function (single-ballot and multiple-ballot).
d. Audience response (100, 75, 50, 25, 0).
e. Video camera auto-track function.
f. System support discuss mode: Free mode, FIFO mode (1-9), Limit mode (1-9).
7. Connection:
a. 1 pcs 13m main cable with 8PIN plugs
b. 8 PIN socket for system connection

Digital Conference System Main Unit HT-7200
Features

1. The main unit can support 60 units delegate and chairman microphone and can be extended to support 250 units microphone with extension power unit.
2. It is equipped with four groups of 13P-DIN interface for system connecting.
3. It has a built-in monitor loudspeaker.
4. It offers built-in video, voting and interpretation processor.
5. The main unit has the following features when working without a computer:
a. LCD display the working mode on the front panel.
b. System support discuss mode: Free mode, FIFO mode (1-9), Limit mode (1-9).
6. The main unit has the following features when working with a computer and other equipment:
a. Manage the meeting with software, support double screen display.
b. Voting function (yes, no, abstain).
c. Electing function (single-ballot and multiple-ballot).
d. Audience response (100, 75, 50, 25, 0).
e. Video camera auto-track function.
f. System support discuss mode: Free mode, FIFO mode (1-9), Limit mode (1-9)
7. It offers system support wire interpretation function.
8. It is equipped with interpretation output channel interface.
9. Connection:
a.1 pcs 13m main cable with 13PIN plugs
b.13 PIN socket for system connection.

Extension Power Supply Unit HT-13EX (13P)/HT-08EX(8P)
If the microphone quantity is more than 60pcs in one system, the system needs an extension power supply unit to support the conference main unit to supply the power to microphone unit. Each extension power supply unit can support 60 units microphone. One system can support up to 250 unit microphone with the extension power unit.

To get the system compatible details, please download the file.

As a China-based digital conference system main unit manufacturer and supplier, We also provide digital video conference system, video tracking system, IR language distribution system, and much more.
