6300 IR Wireless Language Distribution System

The 6300 IR wireless language distribution system is designed to offer language distribution in 4/6/8/12 channels for simultaneous interpretation using the advanced infrared light transmission technology.

Feedback Form

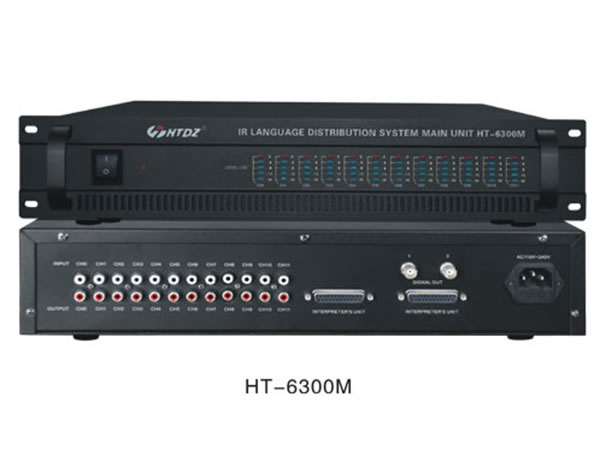

IR Transmitter Unit HT-6300M

IR Transmitter Unit HT-6300M Features
1. The IR transmitter unit of the IR wireless language distribution system offers high security and prevents external interference.
2. It has an automatic level control function (ALC).
3. The IR signals will not be disturbed by daylight.
4. The IR transmitter unit of the IR wireless language distribution system offers an elegant configuration in accordance with ergonomics.
5. It has input channel direct function.
6. It has 12CH audio output for recording.

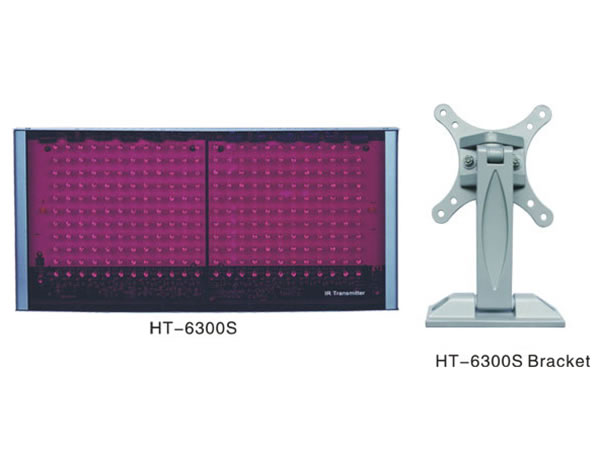

IR Radiator HT-6300S

IR Radiator HT-6300S Features
1. The IR radiator of the wireless language distribution system can radiate and distribute up to 12 channels of audio signal.
2. It offers auto switched on/off by carrier signals from transmitter unit.
3. It has auto gain control to ensure diodes with max. efficiency.
4. It is convection cooled for noiseless, reliable operation.
5. It can be mounted on the ceiling, wall, floor stand or optional tripod.
6. It can be easily daisy-chained together to expand coverage.
7. The half radiator angle is ±22°.

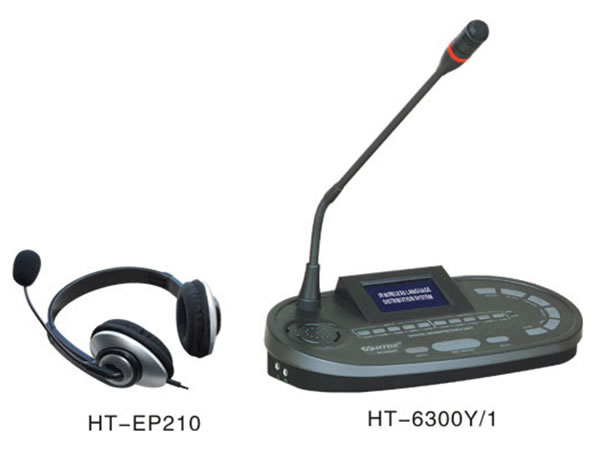

Interpreter Unit HT-6300Y/1

Interpreter Unit HT-6300Y/1 Features
1. The interpreter unit of the IR wireless language distribution system offers 12CH simultaneous interpretation.
2. The IR Transmitter unit can connect 11 interpreter's units.
3. It offers voice adjustment and prevents feedback.
4. It ensures that every channel is correspondent to the RELAY function respectively.
5. If delegates speak too fast, it can give a request for slower speed.
6. It will not pick up interpreter's cough if a special key is pressed down.
7. The LCD can display input and output channel.
8. It has interpreter support 13P and 25P connection.
9. The LCD can display current channel language.

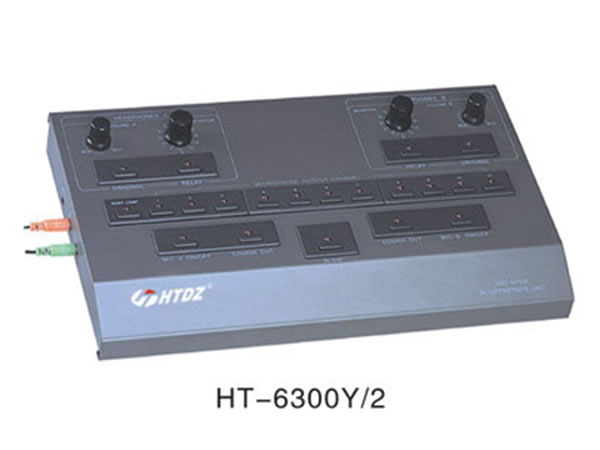

Interpreter Unit HT-6300Y/2

Interpreter Unit HT-6300Y/2 Features
1. It offers 12CH simultaneous interpretation.
2. The IR Transmitter unit can connect 11 interpreter's units.
3. It offers voice adjustment and prevents feedback.
4. It ensures that every channel is correspondent to the RELAY function respectively. In case the interpreter couldn't understand the speaker's language, he could switch to another channel to listen another interpreter's voice and then interpret it.
5. If delegates speak too fast, it can give a request for slower speed.
6. It will not pick up interpreter's cough if a special key is pressed down.
7. More people can take part in the conference when the system is connected with the IR language distribution system.
8. One interpreter's unit can be used for two interpreters in turn.

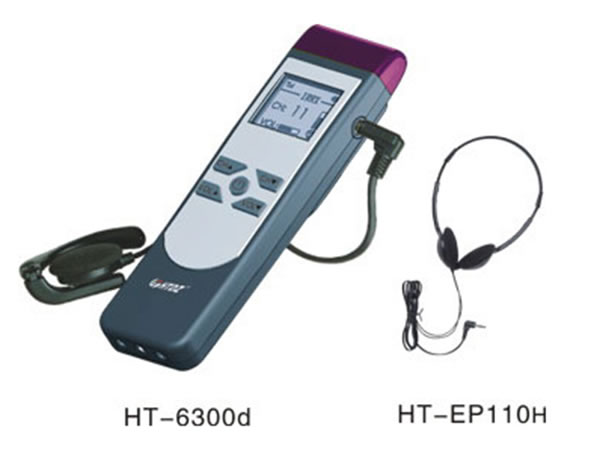

IR Receiver HT-6300d

IR Receiver HT-6300d Features
1. It is a pocket size wireless handheld unit.
2. IR receiver of the wireless language distribution system accommodates up to 12 different languages.
3. It has a channel selector and headphone connector.
4. It offers power on/off switch and volume level control.
5. It is powered by rechargeable batteries.
6. Aluminum carrying cases are provided for receivers
7. Volume, channel, signal and battery power level display on LCD.

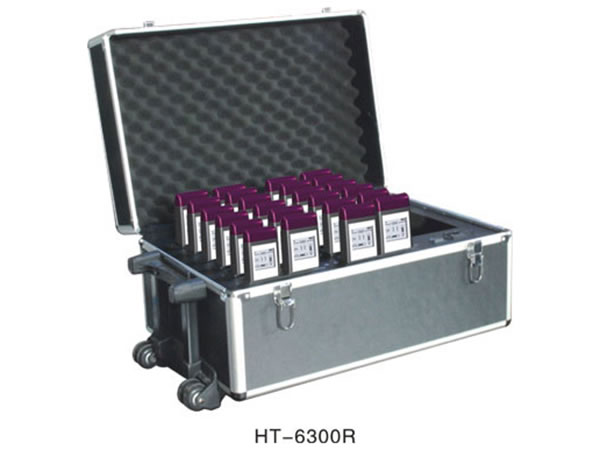

IR Receiver Charger Case HT-6300R

IR Receiver Charger Case HT-6300R Features
1. It is used for charging IR receivers.
2. It offers high efficiency switch mode.
3. The input voltage is AC110V/240V/50Hz~60Hz.
4. It charges 24pcs of IR receivers per charging.
5. The dimensions are 45.5×32×34 cm.

HT-6300 Series supports 12 channels, while HT-6360 Series that supports 6 channels is also available.

As a China-based IR wireless language distribution system manufacturer, we also supply wireless voting system, IR wireless conference system, studio microphone, VHF wireless meeting microphone system, and much more.
